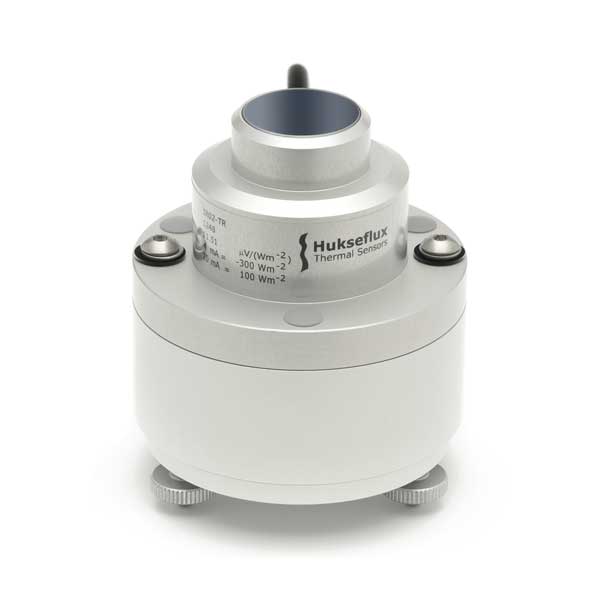

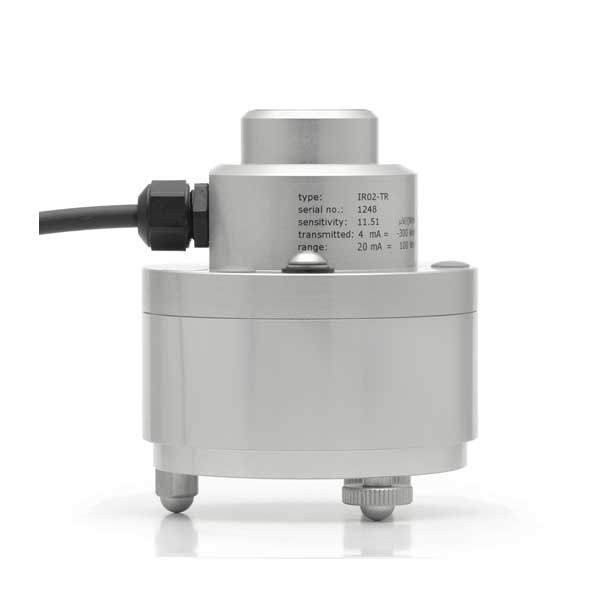

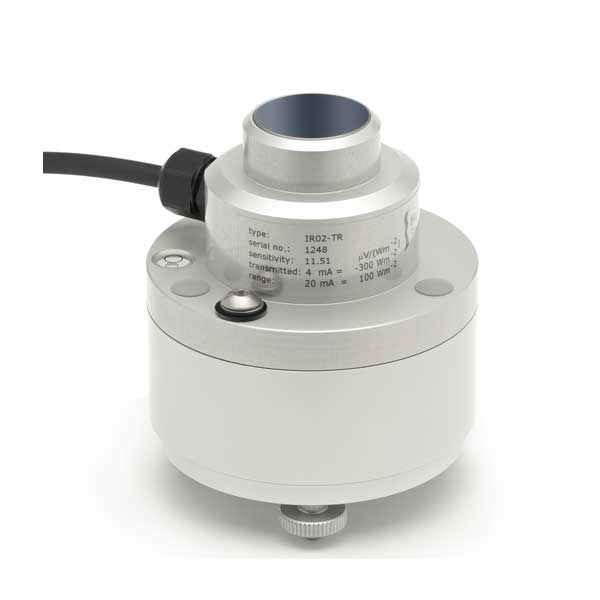

IR02-TR pyrgeometer

Pyrgeometer with heater and 4-20 mA transmitter

IR02-TR is a pyrgeometer suitable for longwave irradiance measurement in meteorological applications. The instrument can be heated, which improves measurement accuracy as it prevents dew deposition on its window. IR02-TR houses a 4-20 mA transmitter for easy read-out by dataloggers commonly used in the industry.



Qty
View List

Description

IR02-TR pyrgeometer with heater

IR02-TR measures the longwave or far-infra-red radiation received by a plane surface, in W/m², from a field of view angle of approximately 150°. Longwave radiation is the part of radiation that is not emitted by the sun. The actual field of view angle of IR02-TR is not the ideal 180°. The reduction of this field of view makes it possible to offer an instrument at an attractive price level, while the accuracy loss is relatively small. IR02-TR has a window with a cut-on at 4.5 x 10⁻⁶ m, making it suitable for day- and night observations.

Operation

Using IR02-TR is easy. The pyrgeometer can be connected directly to commonly used data logging systems. The irradiance in W/m² is calculated by using the transmitter’s output and the temperature reading. The final result is calculated taking into account the irradiance radiated by the sensor itself (Stefan-Boltzmann law). In IR02-TR’s standard configuration, the 4 to 20 mA output corresponds to a transmitted range of -300 to +100 W/m² . This range can be adjusted at the factory upon request.

IR02-TR Design

IR02-TR pyrgeometer employs a thermal sensor with black coating, a flat silicon window with solar blind filter and an anodised aluminium body. IR02-TR houses an on-board heater. Heating prevents condensation of water on the pyrgeometer window which, when occurring, leads to very large measurement errors. IR02-TR has a high sensitivity. With the transmitter a typical datalogger no longer contributes to the uncertainty of the measurement.

Specifications

Measurand longwave radiation
Optional measurand sky temperature
Spectral range 4.5 to 42 x 10⁻⁶ m
Field of view angle 150 °
Response time  (95 %) 18 s
Rated operating temperature range -40 to +80 °C
Transmitted range -300 to 100 W/m²
Temperature dependence < ±3 %  (-10 to +40 °C)
Calibration traceability to WISG
Optional traceability to blackbody (ITS-90)
Heater 12 VDC, 1.5 W
Temperature sensor Pt100
Standard cable length 5 m (see options)
Options
  • longer cable, in multiples of 5 metres
  • blackbody calibration (ITS-90)
  • adapted transmitted range
  • IR02 version without transmitter

Application

Suggested use

  • general meteorological observations
  • climatological networks
  • agricultural warning networks (frost)
