SRA15 series albedometer


Spectrally flat Class B albedometers

SRA15 series spectrally flat Class B albedometer is an instrument that measures global and reflected solar radiation and the solar albedo, or solar reflectance. It is composed of two SR15 series spectrally flat Class B pyranometers and one AMF03 albedometer mounting kit. AMF03 includes one glare screen, one mounting fixture with rod, mounting hardware and tools. Each pyranometer has a thermopile sensor, the upfacing one measuring global solar radiation, the downfacing one measuring reflected solar radiation. You may choose digital SR15-D1 pyranometers with heating, analogue SR15-A1 pyranometers, offering millivolt output and heating, or SR15-D2A2 pyranometers with 4-20 mA output. SRA15 complies with the latest ISO and WMO standards. The modular design facilitates maintenance and calibration.


View List

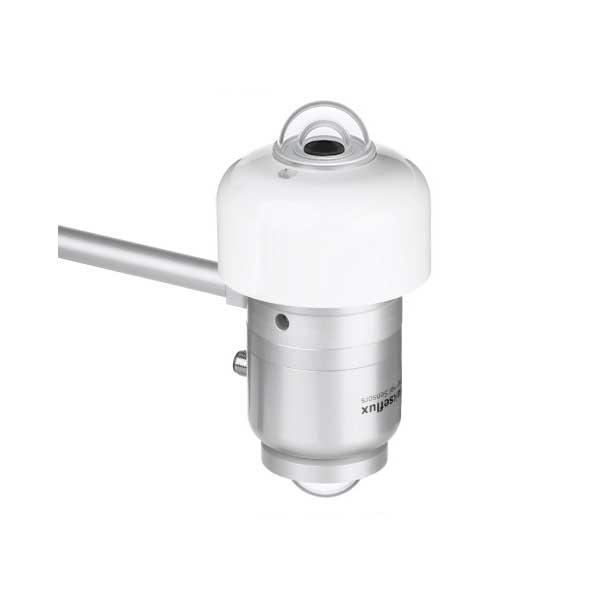

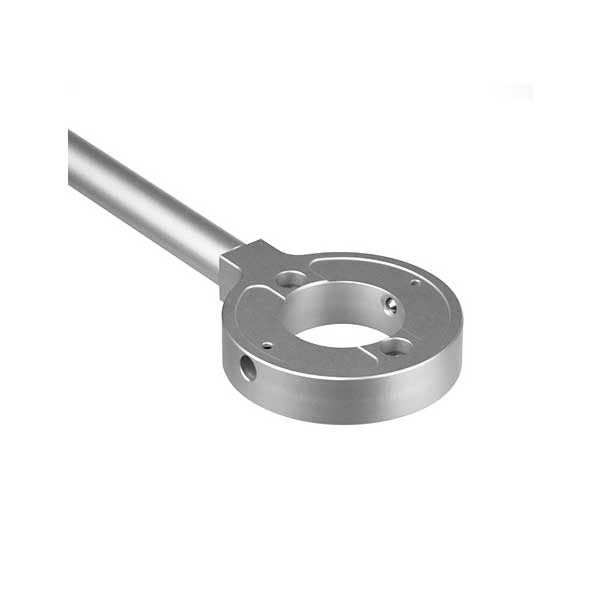

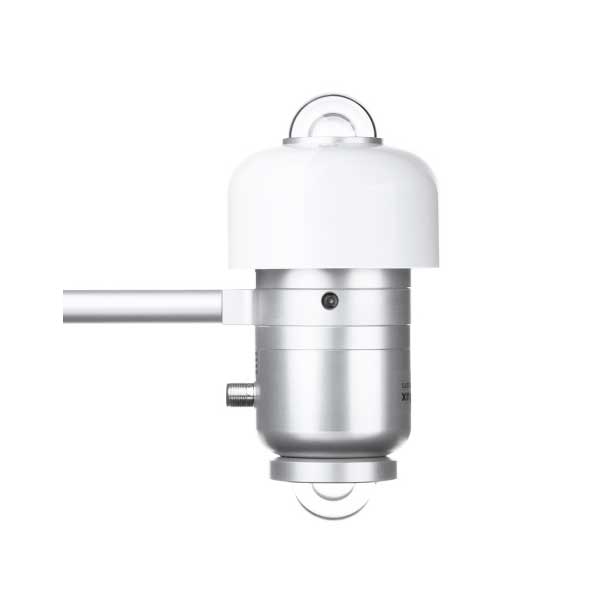

SRA15 consists of two identical pyranometers model SR15, one facing up, one facing down. To create an SRA15, the two sensors are combined with one AMF03 albedometer mounting kit. AMF03 includes a fixture with rod for mounting purposes and a glare screen. The user assembles these modular components into an SRA15 series albedometer. Mounting hardware, tools and a mounting and fixation instruction are part of AMF03. The modular design of SRA15 facilitates maintenance and calibration.
An albedometer is an instrument composed of two pyranometers, the upfacing one measuring global solar radiation, the downfacing one measuring reflected solar radiation. You can then derive the solar albedo, or solar reflectance and net solar radiation. Albedometers are used for general meteorological observations, building physics, roof reflectance studies, climate studies and solar collector testing. A common application is for outdoor solar radiation balance measurements as part of a meteorological station. Albedometers are increasingly popular in bifacial PV module performance monitoring. This application requires horizontal levelling; a bubble level and a mounting rod are included.
Using SRA15 albedometer is easy. The instrument is composed of two SR15 Spectrally Flat Class B pyranometers; the upfacing one measuring global solar radiation, the downfacing one measuring reflected solar radiation. When using SR15-A1, the irradiance in W/m2 in each direction is calculated by dividing the pyranometer output, a small voltage, by the sensitivity. Other models SR15-D1 and SR15-D2A2 models have digital outputs. The working principle and specifications of the pyranometers can be found in the SR15 series user manual. SRA15 can be connected directly to commonly used datalogging systems.


Measurand global solar radiation and reflected solar radiation
Optional measurand albedo or solar reflectance
SRA15 series specifications :
Mounting mounting rod with 15 x 10⁻³ m diameter
Rated operating temperature -40 to +80 °C range
SR15 :
Included sensors 2 x identical ISO 9060 Spectrally Flat Class B pyranometer either SR15-D1, SR15-A1 or SR15-D2A2
Output analogue millivolt (SR15-A1), digital Modbus RTU over  RS-485 (SR15-D1) or Modbus RTU over TTL and 4-20 mA (SR15-D2A2)
Calibration uncertainty < 1.8 % (k = 2)
Calibration traceability to WRR
Measurement range 0 to 2000 W/m²
Temperature response < ± 2 % (-10 to +40 °C)
Standard cable length 5 m (see options)
AMF03 :
Included parts 1 x glare screen; 1 x AMF03 fixture with rod; 1 x conical positioner; 2 x M5x12 socket head cap screw; 1 x M6x8 socket head cap screw, 2 x M8x12 set screw, 1 x mounting and fixation instruction sheet

  • longer cables, in multiples of 5 m, cable lengths above 20 m in multiples of 10 m


Suggested use

  • PV monitoring with bifacial solar modules
  • high-accuracy meteorological observations
  • building physics, roof reflectance studies
