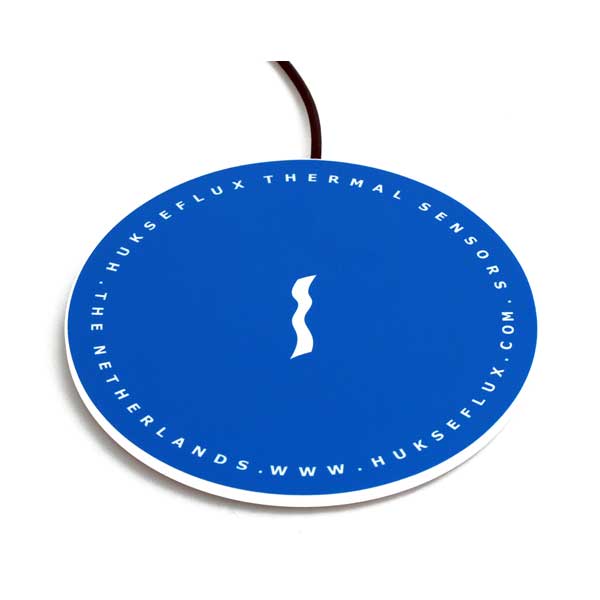

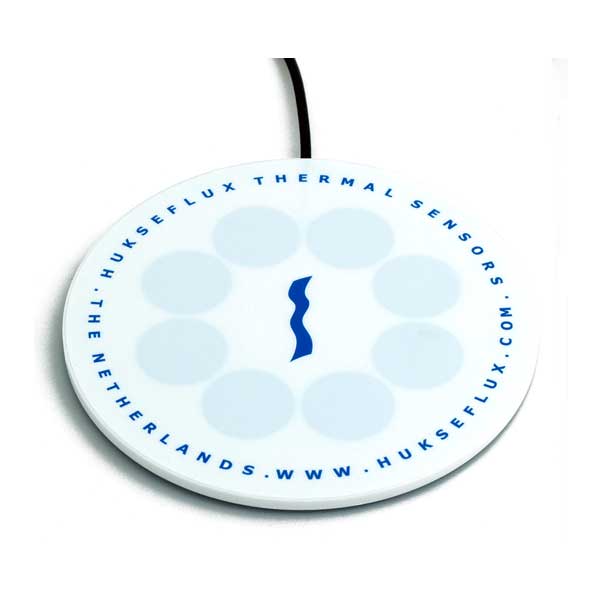

HFP03 heat flux sensor

Ultra sensitive heat flux plate

HFP03 is an ultra sensitive sensor for measurement of small heat fluxes in the soil as well as through walls and building envelopes. The total thermal resistance is kept small by using a ceramics-plastic composite body. See also model HFP01: putting several HFP01 sensors electrically in series is an alternative for using HFP03.


View List


Ultra sensitive sensor for measurement of small heat fluxes

HFP03 measures heat flux through the object in which it is incorporated or on which it is mounted, in W/m². HFP03 is specifically suitable for measurement of small flux levels, in the order of less than 1 W/m², for instance in geothermal applications. The sensor in HFP03 is a thermopile. This thermopile measures the temperature difference across the ceramics-plastic composite body of HFP03. A thermopile is a passive sensor; it does not require power. Using HFP03 is easy. It can be connected directly to commonly used data logging systems. The heat flux in W/m² is calculated by dividing the HFP03 output, a small voltage, by the sensitivity. The sensitivity is provided with HFP03 on its calibration certificate.


Measurand heat flux
Measurement range -2000 to +2000 W/m²
Sensitivity (nominal) 500 x 10⁻⁶ V/(W/m²)
Sensing area 64 x 10⁻⁴ m²
Sensor thermal resistance 71 x 10⁻⁴ K/(W/m²)
Sensor resistance range 10 to 32 Ω
Sensor thickness 5.4 x 10⁻³ m
Uncertainty of calibration ± 6 % (k= 2)
Rated operating temperature range -30 to +70 °C
Cable diameter 4 x 10⁻³ m
IP protection class IP67
Standard cable length 5 m
Options longer cable length (10, 15, 20, 30, 40 m)
  • longer cable, in multiples of 5 m, cable lengths above 20 m in multiples of 10


Suggested use

  • extremely small heat fluxes
  • geothermal heat flux
