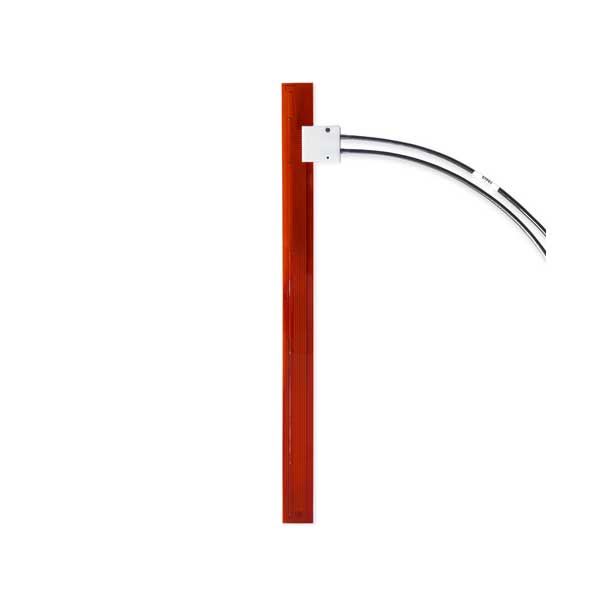

STP01 soil temperature sensor


Soil temperature profile sensor with self-test
STP01 accurately measures the temperature profile of the soil at 5 depths close to its surface. It is used for scientific grade surface energy balance measurements. The sensor is buried and usually cannot be taken to the laboratory for calibration. The on-line self-test using the incorporated heating wire offers a solution to verify STP01’s measurement stability.

Qty
View List

Description

Improved accuracy & quality assurance

STP01 soil temperature profile sensor offers an accurate temperature difference measurement at five measurement locations at 0.02, 0.05, 0.1, 0.2 and 0.5 m below the soil surface. It also has a well specified and fixed distance between the measurement locations. STP01 contains 5 matched thermocouples, at locations A to E in figure 5, and one reference temperature sensor (Pt100 type) at location E at 0.5 m depth. By having the reference temperature measurement in the sensor and only measuring differential thermocouple voltages (relative to the reference  at 0.5 m), the uncertainty of the  temperature difference measurement is very low: ± 0.02 °C is attainable. Simple copper-conductor signal wire is used in STP01’s cable. As an extra, a heating wire is incorporated in STP01. Analysis of the temperature change during the heating interval serves as a self-test. Soil temperature sensors are preferably left in the soil for as long as possible, so that the soil properties become representative of natural conditions. Using self-testing, the user no longer needs to take sensors to the laboratory to verify their stable performance. The result is a much improved accuracy & quality assurance of the measurement relative to measurements with conventional sensor types.

Specifications

Measurand temperature at 5 depths from 0 to 0.5 m
Measurement range -30 to +70 °C
Temperature sensors matched thermocouples type T
Uncertainty of temperature difference measurement 1.5 % of measured value plus measurement system uncertainty in x 10⁻⁶ V/40
Uncertainty of relative position ± 0.001 m
Rated operating environment surrounded by soil
On-line functionality testing self-test using the incorporated heater
Reference temperature sensor Pt100, IEC 751:1983 class B
Sensor foil thickness 0.6 x 10⁻³ m, 2.5 x 10⁻³ m at Pt100
Measurement depths 0.02, 0.05, 0.1, 0.2 and 0.5 m
Standard cable length (2 cables) 5 m (see options)
IP protection class IP67
Optional non-traceable measurand thermal conductivity at 3 depths
Heater specifications :
Heater rated power supply 9 to 15 VDC
Power consumption daily average 0.005 W
Interval between self-tests 24 h
Self-test duration 600 s
Order code STP01/cable length in m
Options
  • longer cable (2 x), in multiples of 5 m, cable lengths above 20 m in multiples of 10 m
  • insertion tool IT01

Application

Suggested use

  • high accuracy, scientific grade measurement of the soil energy balance, with a high level of data quality assurance
