HTR02 series heater

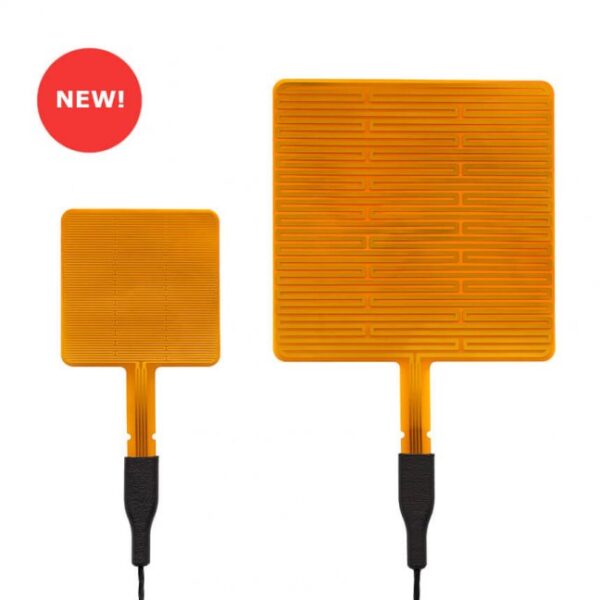

Hukseflux, the world market leader in heat flux sensors, simplifies heat flux sensor performance checks. HTR02 series is a heater with a cable with 4-wires, a known surface area and electrical resistance. It is used for functionality checks of heat flux sensors like FHF05 series. Users can now easily and objectively check their sensor performance before and after use. HTR02 series is available in two different models: 50X50 and 85X85 mm. Users can use the heaters for all sensor dimensions in FHF05 series. See also model FHF05SC series heat flux sensor with integrated heater.

Qty
View List

Description

Measuring heat flux, users may wish to regularly check their sensor performance. A quick check is now possible with HTR02 series plus some accessories that most laboratories will have in-house. The HTR02 series heaters have a well characterised a traceable surface area and electrical resistance.

HTR02 series is a foil heater. Either it can be used in combination with foil heat flux sensors such as FHF05 series for test purposes or as a general-purpose heater.

Unique features and benefits

  • makes it possible to perform a simple test
  • guarantees sensor stability
  • matches all models of FHF05 series heat flux sensors
  • HTR02 series heaters have a well characterised and traceable surface area and electrical resistance
  • supplied with product certificate stating surface area in [m²] and heater resistance in [Ω]

Heaters of HTR02 series can easily be used with all models of FHF05 series. To achieve higher measurement performance, it is recommended to make a guard for models  FHF05-10X10, -15X30 and -15X85. See the user manual for more information.

Specifications

Power supply voltage 12 VDC
Effective heater area per model :
50X50 2381 x 10⁻⁶ m²
85X85 7022 x 10⁻⁶ m²
Heater electrical resistance per model :
50X50 120 Ω (nominal)
85X85 40 Ω (nominal)
Heater thickness 0.1 x 10⁻³ m
Outer dimensions foil per model :
50X50 (50 x 50) x 10⁻³ m
85X85 (85 x 85) x 10⁻³ m
Rated operating temperature range – continuous use -40 to +150 °C
Heater rated power supply 9 to 15 VDC
Standard cable length 2 m (2 x 2 wires)
Certificate supplied with a certificate stating surface area in [m²] and heater resistance in [Ω]
Requirements for testing metal heat sink > 1 kg; power supply 12 VDC; 0.2 A; insulation material; voltage measurement; contact material such as glycerol or toothpaste
Options with 5 or 10 m cable length
Options
  • with 2, 5 or 10 m cable length
  • with a separate cable in 2, 5 or 10 m

Application

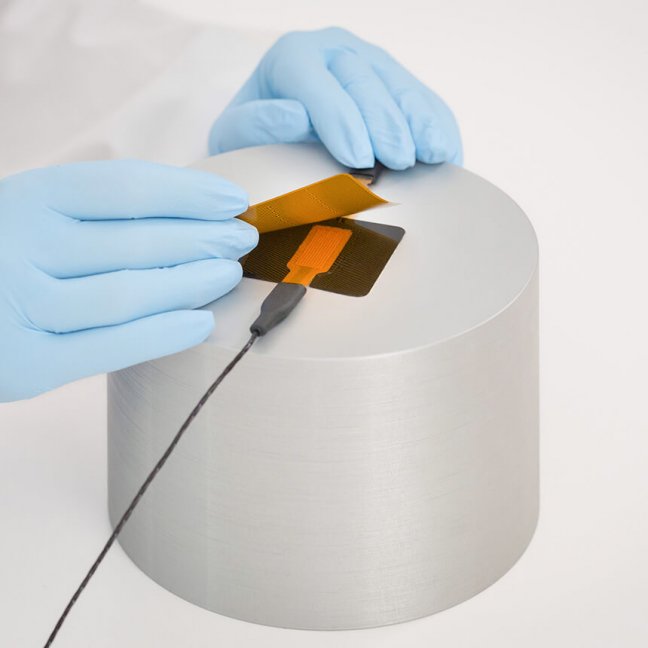

  • verification of performance of FHF-type heat flux sensors
